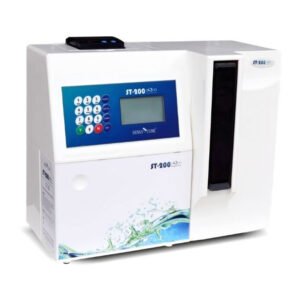

Sensa Cores ST-200aQua Electrolyte Analyzer is a automated, microprocessor-controlled electrolyte system that uses current ISE technology to make imbalance of electrolyte measurement. The ST-200aQua Electrolyte Analyzer is used for quantitative determination/ measurement of Sodium, Potassium, Calcium, Lithium, pH and Chloride in whole blood/ plasma/ serum/CSF. And it is also used for quantitative determination/measurement of Sodium, Potassium and Chloride in urine. Measurements obtained by this device are used for the diagnosis, monitoring, and treatment of diseases involving electrolytes imbalance. Sensa Core’s ST-200 aQua Electrolyte Analyzer is specifically designed to meet the needs of small to medium-size laboratories using the latest ISE technology. Sensa Core’s Electrolyte Analyzers improve lab productivity while delivering sample results economically. Snap-in electrode design, combined with precise control of calibrator volumes, ensure economical operation and a low cost per sample in our Analyzers.

Technical Specifications

Sample Volume 100 µL
Sample Type Whole Blood, Serum, Plasma, CSF & Urine
Parameters Na, K, iCa, Cl, Li, pH
External Integration LIS Integration (Serial Port)
Dimensions 14.6″W x 12.4″H x 9.6″D,
Weight Weight: 4.3Kg
Colour Pearl White
Pump Mechanism Long-Lasting Comprehensive Lyte
Sample Storage  10,000 Samples, 250 Urine, 100 QC
Language/s Single Language
Auto Sampler Not Available
Principle Direct Measurement with ISE
Parameter Combinations 10 Combinations
Keypad Alphanumeric
Operating System Embedded C
External Battery Available (Optional)
Input Voltage 110/115-V AC, 50-60 Hz or 220V AC, 50-60 Hz, 0.75 amp.
Print Result 2 Inch 24 Column Thermal Printer
Operating Atmosphere Temperature: 5 – 40 Degrees C, <85% Moisture
Acquirable Results / Hour 60 Results
Result Time 50 Seconds
Sample Mechanism Semi-Auto Sampling
Display 128*64 Alphanumeric Display
